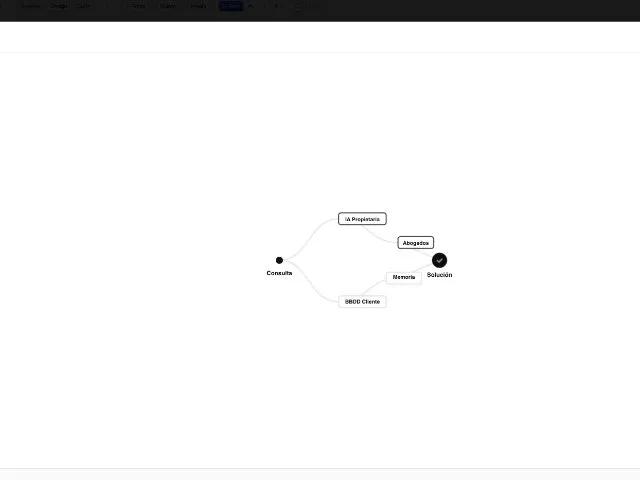

Animated Signal Flow Diagram SVG

<svg class="w-[462px] h-[346px]" viewBox="0 0 400 300" stroke-width="2"
  style="width: 462px; height: 346px; color: rgb(17, 17, 17);">

  <style>
    /* ============ Señal en movimiento (reutilizable) ============ */
    .signal-path {
      stroke-dasharray: 60 400;
      stroke-dashoffset: 60;
      animation: signal-flow 6s linear infinite;
      stroke-linecap: round;
    }

    /* Variante para la línea de abajo (mismo efecto, distinto timing) */
    .signal-path-bottom {
      stroke-dasharray: 60 400;
      stroke-dashoffset: 60;
      animation: signal-flow 6s linear infinite;
      animation-delay: 0.7s;
      /* quítalo si quieres que vaya sincronizada */
      stroke-linecap: round;
    }

    @keyframes signal-flow {
      0% {
        stroke-dashoffset: 60;
        opacity: 0;
      }

      5% {
        opacity: 1;
      }

      90% {
        stroke-dashoffset: -360;
        opacity: 1;
      }

      95% {
        opacity: 0;
      }

      100% {
        stroke-dashoffset: -360;
        opacity: 0;
      }
    }

    /* ============ Pulsos de nodos (tu código original) ============ */
    .node-context {
      animation: pulse-context 6s infinite ease-out;
      transform-origin: 50px 150px;
    }

    @keyframes pulse-context {
      0% {
        transform: scale(1);
        fill: #111;
      }

      5% {
        transform: scale(1.4);
        fill: #000;
      }

      15% {
        transform: scale(1);
        fill: #111;
      }
    }

    .node-assumptions {
      animation: pulse-assumptions 6s infinite ease-out;
      transform-origin: 190px 80px;
    }

    @keyframes pulse-assumptions {
      25% {
        stroke-width: 1.5;
        transform: scale(1);
      }

      30% {
        stroke-width: 2.5;
        transform: scale(1.05);
        stroke: #000;
      }

      40% {
        stroke-width: 1.5;
        transform: scale(1);
        stroke: #111;
      }
    }

    .node-evidence {
      animation: pulse-evidence 6s infinite ease-out;
      transform-origin: 280px 120px;
    }

    @keyframes pulse-evidence {
      55% {
        stroke-width: 1.5;
        transform: scale(1);
      }

      60% {
        stroke-width: 2.5;
        transform: scale(1.05);
        stroke: #000;
      }

      70% {
        stroke-width: 1.5;
        transform: scale(1);
        stroke: #111;
      }
    }

    .node-outcome {
      animation: pulse-outcome 6s infinite ease-out;
      transform-origin: 320px 150px;
    }

    @keyframes pulse-outcome {
      85% {
        transform: scale(1);
        fill: #111;
      }

      90% {
        transform: scale(1.25);
        fill: #000;
      }

      100% {
        transform: scale(1);
        fill: #111;
      }
    }

    .outcome-check {
      stroke-dasharray: 12;
      stroke-dashoffset: 12;
      animation: check-draw 6s linear infinite;
    }

    @keyframes check-draw {

      0%,
      88% {
        stroke-dashoffset: 12;
        opacity: 0;
      }

      92% {
        stroke-dashoffset: 0;
        opacity: 1;
      }

      100% {
        stroke-dashoffset: 0;
        opacity: 0;
      }
    }
  </style>

  <!-- ============ Static Base Paths (gris) ============ -->
  <!-- Rama superior -->
  <path d="M50,150 C100,150 100,80 150,80" fill="none" stroke="#E5E5E5" stroke-width="2"></path>
  <path d="M150,80 C200,80 200,120 250,120" fill="none" stroke="#E5E5E5" stroke-width="2"></path>
  <path d="M250,120 L320,150" fill="none" stroke="#E5E5E5" stroke-width="2"></path>

  <!-- Rama inferior -->
  <path d="M50,150 C100,150 100,220 150,220" fill="none" stroke="#E5E5E5" stroke-width="2"></path>
  <path d="M150,220 C200,220 200,180 250,180" fill="none" stroke="#E5E5E5" stroke-width="2"></path>
  <path d="M250,180 L320,150" fill="none" stroke="#E5E5E5" stroke-width="2"></path>

  <!-- ============ Active Signal Paths (negro animado) ============ -->
  <!-- Señal arriba (igual que tu original) -->
  <path d="M50,150 C100,150 100,80 150,80 C200,80 200,120 250,120 L320,150" fill="none" stroke="#111" stroke-width="2.5"
    class="signal-path"></path>

  <!-- Señal abajo (nuevo) -->
  <path d="M50,150 C100,150 100,220 150,220 C200,220 200,180 250,180 L320,150" fill="none" stroke="#111"
    stroke-width="2.5" class="signal-path-bottom"></path>

  <!-- ============ Nodes & Text ============ -->
  <circle cx="50" cy="150" r="6" fill="#111" class="node-context"></circle>
  <text x="50" y="175" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="10"
    font-weight="600" fill="#111">Consulta</text>

  <rect x="150" y="70" width="80" height="20" rx="4" fill="white" stroke="#111" stroke-width="1.5"
    class="node-assumptions"></rect>
  <text x="190" y="83" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="9"
    font-weight="600" fill="#111" dy="1">IA Propietaria</text>

  <rect x="150" y="210" width="80" height="20" rx="4" fill="white" stroke="#E5E5E5"></rect>
  <text x="190" y="222" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="9"
    font-weight="600" fill="#111" dy="1">BBDD Cliente</text>

  <rect x="230" y="170" width="60" height="20" rx="4" fill="white" stroke="#E5E5E5"></rect>
  <text x="260" y="180" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="9"
    font-weight="600" fill="#111" dy="1">Memoria</text>

  <rect x="250" y="110" width="60" height="20" rx="4" fill="white" stroke="#111" stroke-width="1.5"
    class="node-evidence"></rect>
  <text x="280" y="123" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="9"
    font-weight="600" fill="#111" dy="1">Abogados</text>

  <circle cx="320" cy="150" r="12" fill="#111" class="node-outcome"></circle>
  <path d="M316 150l3 3 5-5" stroke="white" stroke-width="2" fill="none" stroke-linecap="round" stroke-linejoin="round"
    class="outcome-check"></path>
  <text x="320" y="178" text-anchor="middle" font-family='"Plus Jakarta Sans", sans-serif' font-size="10"
    font-weight="600" fill="#111">Solución</text>

</svg>
